Specification

MODEL	FN-22	MZX3-36	MZX3-66C	MZX3-76C
Knitting Speed	1.2m/s	1.2m/s	1.2m/s	1.4m/s
Knitting Width	22 inch (58cm)	36 inch (91cm)	66 inch (168cm)	76 inch (193cm)
Machine Dimension(LWH)	-	2300*1000*1400mm	3500*1000*1400mm	-
Packing Dimension(LWH)	-	2400*1100*1800mm	3600*1100*1800mm	-
N.W.	-	1080	1400	-
Gross Weight(kg)	-	1180	1500	-

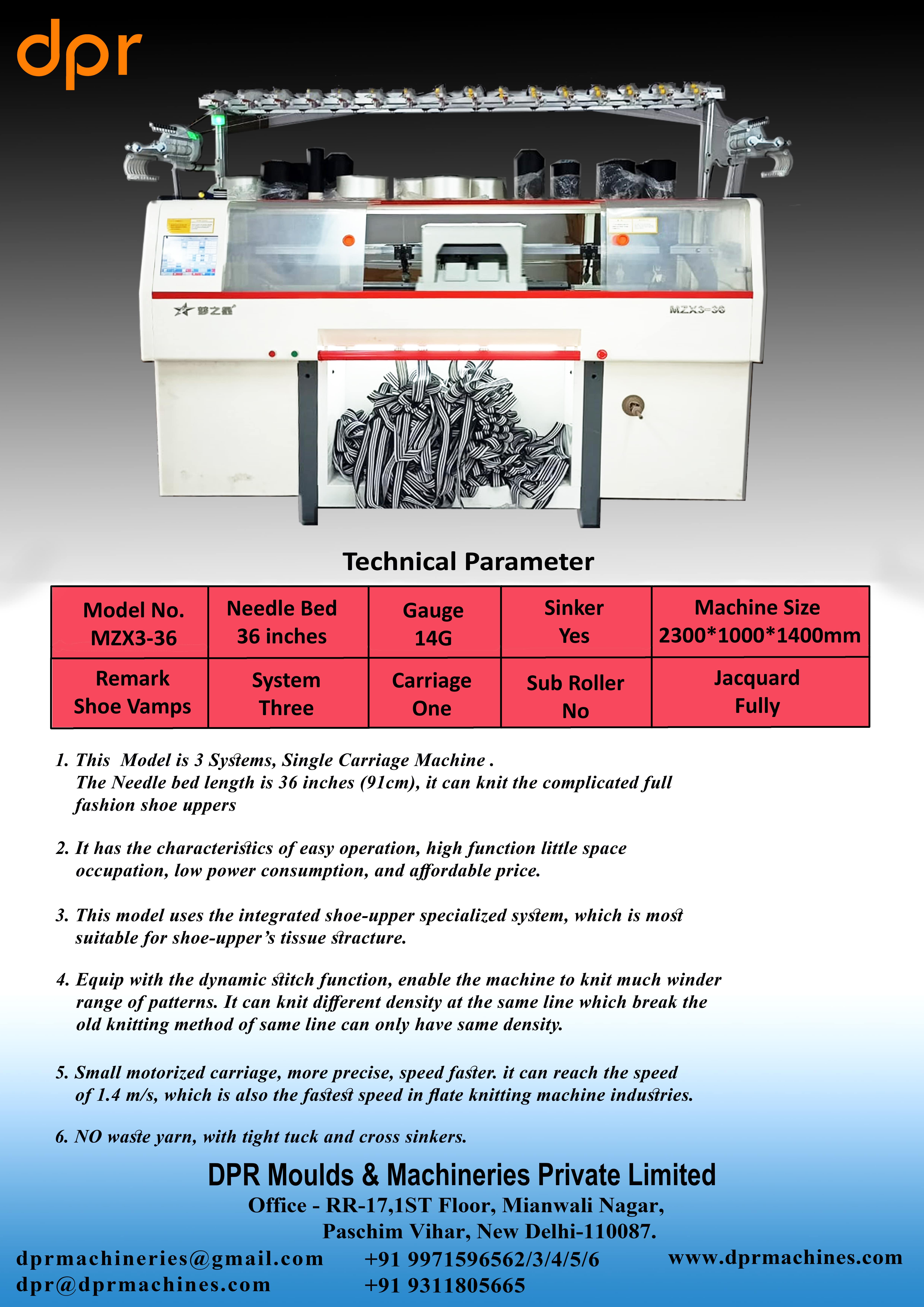

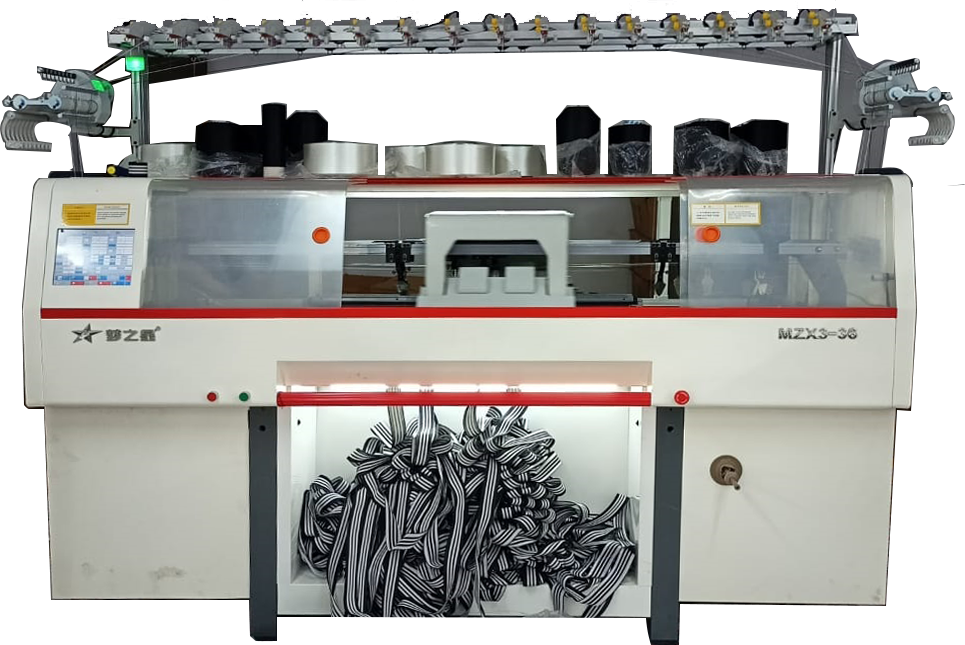

1. This  Model is 3 Systems, Single Carriage Machine . The Needle bed length is 36 inches (91cm), it can knit the complicated full fashion shoe uppers.

2. It has the characteristics of easy operation, high function little space occupation, low power consumption, and affordable price.

3. This model uses the integrated shoe-upper specialized system, which is most suitable for shoe-upper’s tissue stracture.

4. Equip with the dynamic stitch function, enable the machine to knit much winder range of patterns. It can knit different density at the same line which break the old knitting method of same line can only have same density.

5. Small motorized carriage, more precise, speed faster. it can reach the speed of 1.4 m/s, which is also the fastest speed in flate knitting machine industries.

6. NO waste yarn, with tight tuck and cross sinkers.
