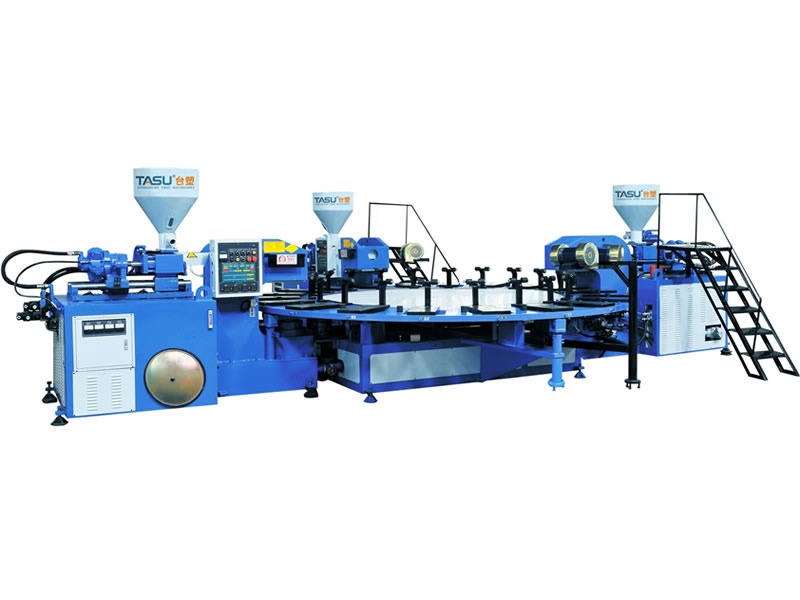

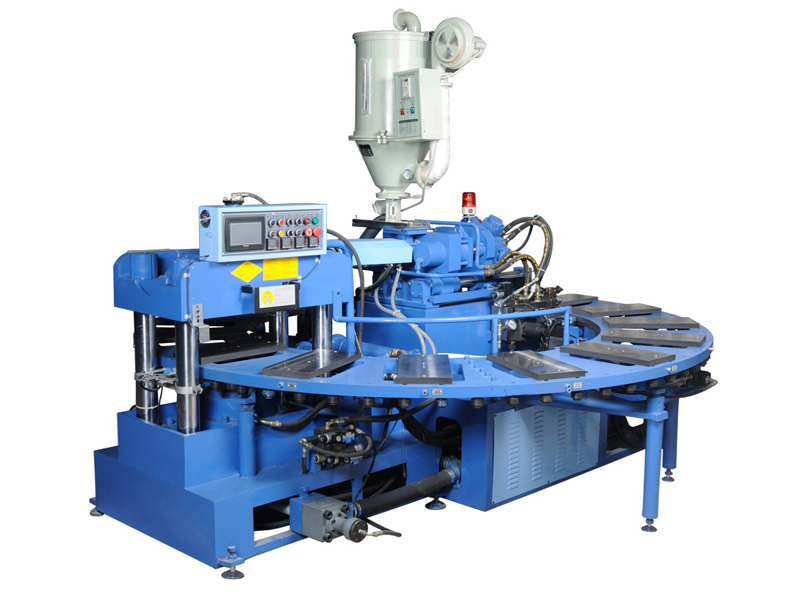

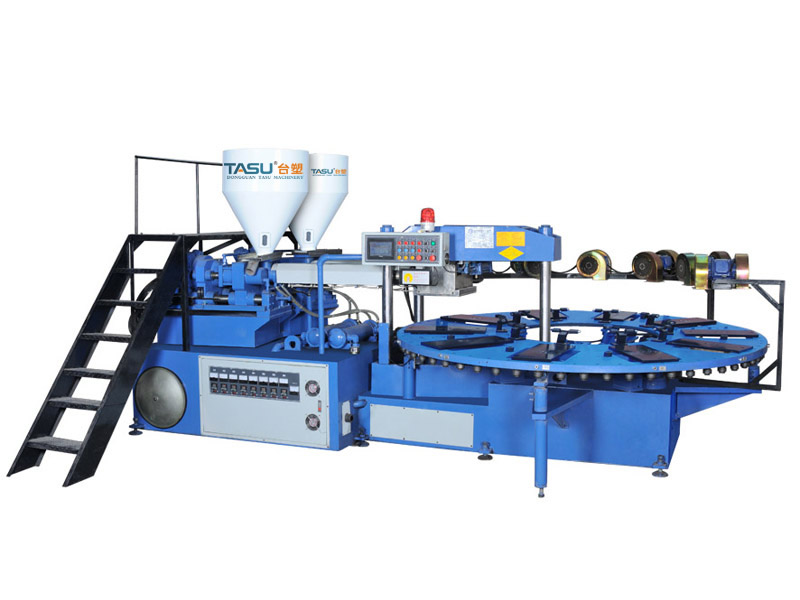

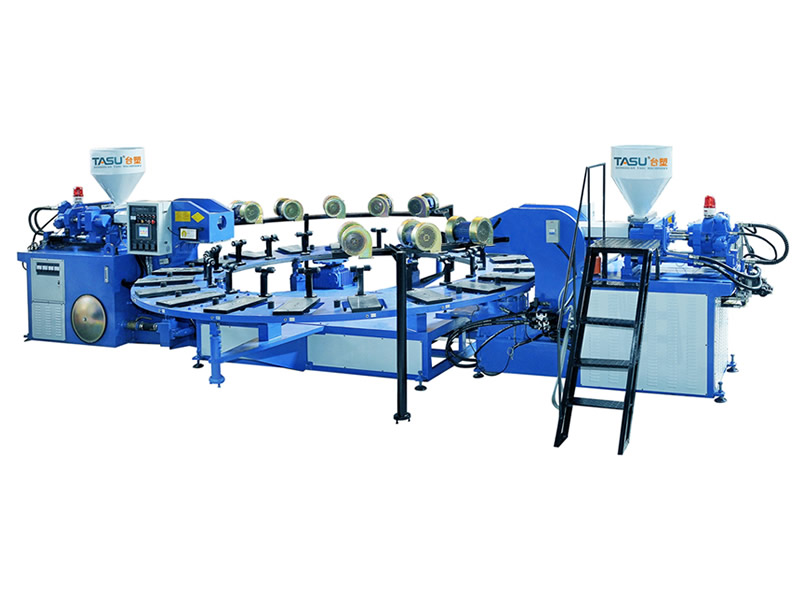

tpr tpu pvc sole making machines

Specification

MODEL	UNIT	TS-168	TS-268	TS-216	TS-318
Number of Work Staions	Stations	12/16	12/16	16	20
Productivity per hour	pairs	80-200	50-130	150-200	150-250
Screw Diameter	mm	@60	@60/@65	@65x1/@50x1	@65x1/@50x2
Screw Length diameter ratio	L/D	22:1	22:1	22:1	22:1/22:1
Max. Injection volume	cm3	560	560/560	660/390	660/390
Max. Injection pressure	kgf/cm2	950	950/820	670/1000	670/1000x2
Mould clamping force	tons	150	150	80	80
Mould space(LxWxH)	mm	600x500x200	600x500x200	450x250x185	550x450x170
Motor	Kw/hp	15/20	15/20	15/20+11/15	15/20+11/15x2
Auto thermo controller	sets	4	7	8	12
Heating bands power	kw	8	14	14	21
Total Electric Consumption	kw	23	29	40	58
Machine dimension(LxWxH)	m	5x2.5x2.4	5x2.5x2.4	4.9x4.6x2.1	7.6x5.8x2
Weight (Approx)	tons	6.0T	7.5T	8.8T	12T
