pattern stitching machine


Specification

Production Description

  1. With the derect 550W servo motor ,keep strong power when machine sewing .
  2. With strong sewing power at beginning or thread trimming even the speed is at 2700 rpm .

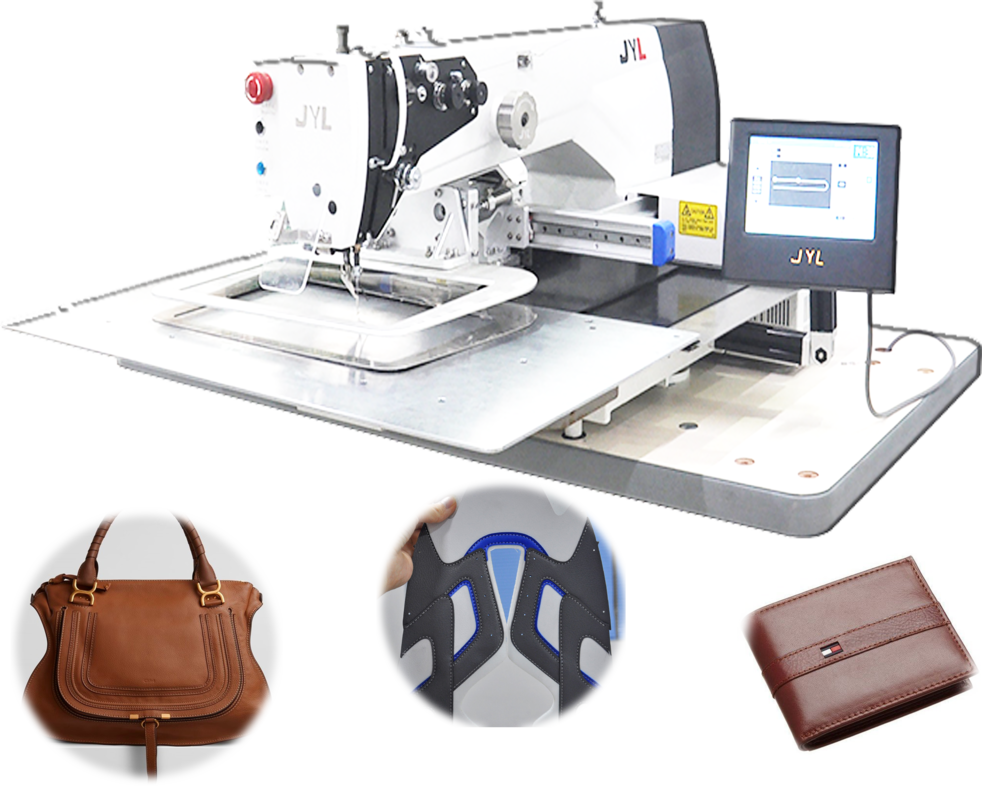

  3. This electronic programmable pattern sewing machine is suitable for large area sewing,  such as bags, furnitures, shoes and various leather products.
  4. Double times rotary hook
  5. E-tension devices ,setting the tension strength
  6. Double push road and make more stable stitching quality
  7. Machine appearance in unique design.

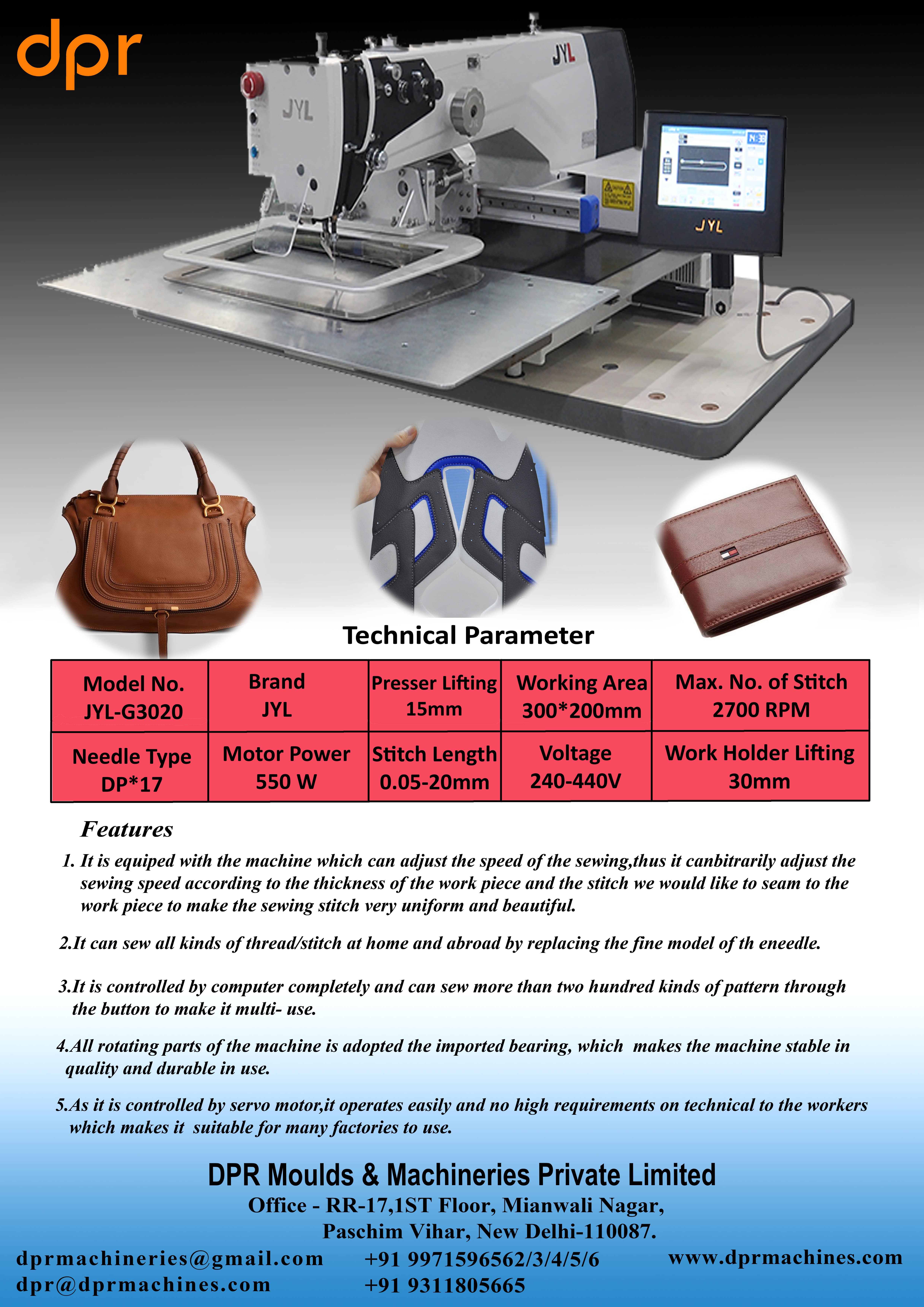

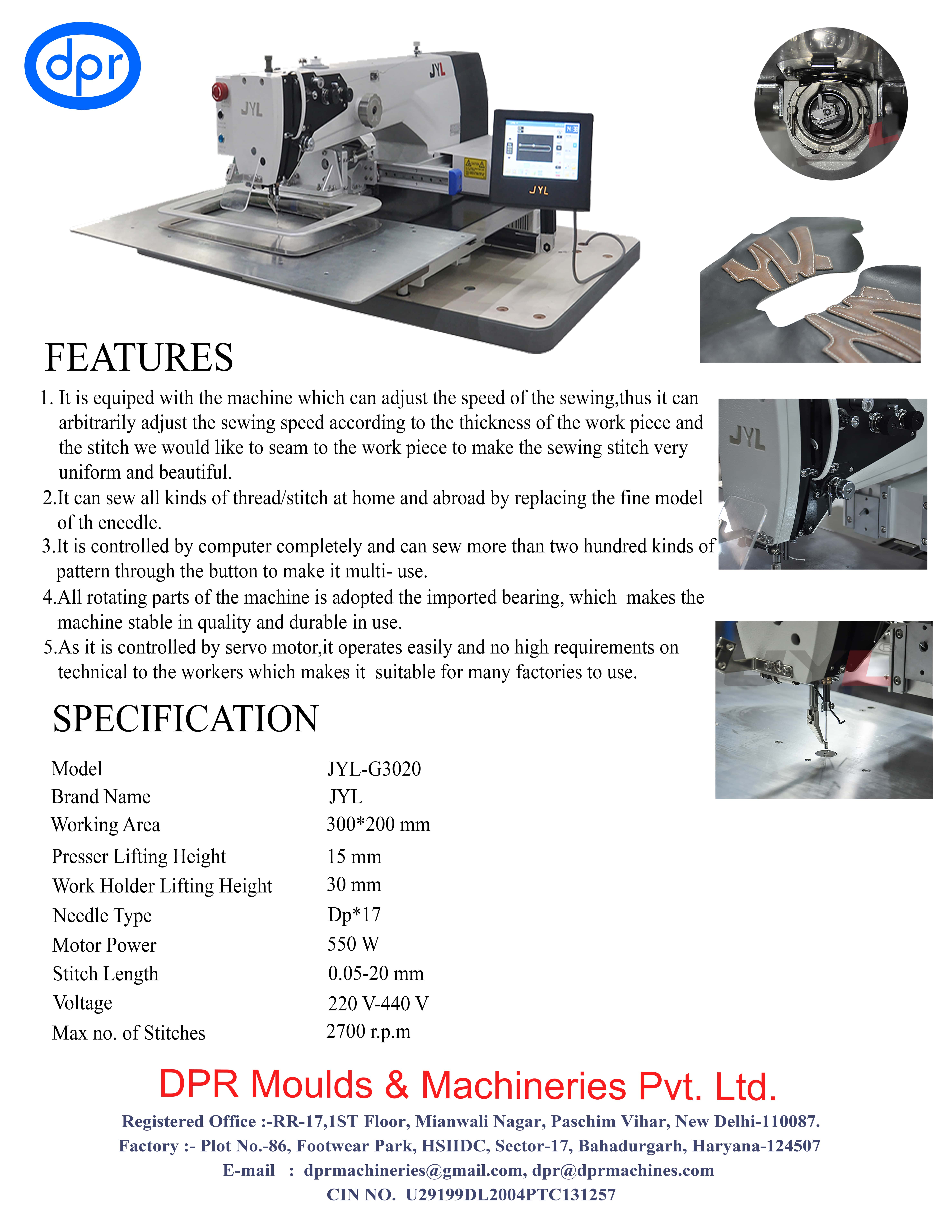

Specification

Model
JYL-G3020
Brand Name
JYL
Working Area
300*200 mm
Presser Lifting Height
15 mm
Work holder Lifting Height
30 mm
Needle Type
Dp*17
Motor Power
550W
Stitch Length
0.05-20 mm
Voltage
220V-440V
Max no. of stitches
2700 r.p.m
